Beschreibung

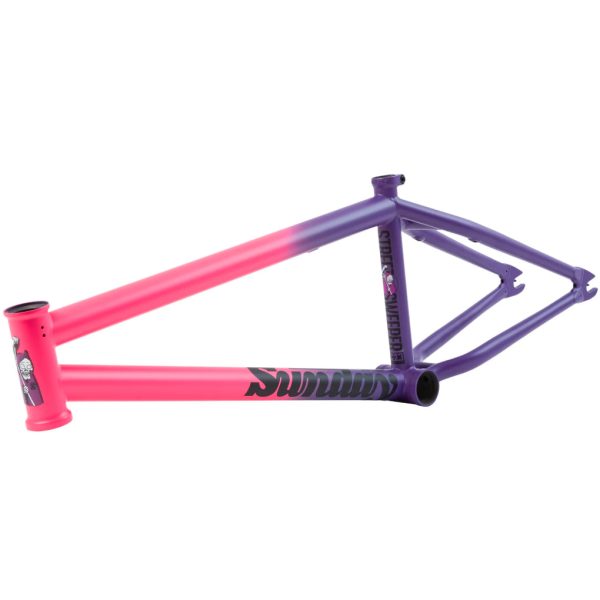

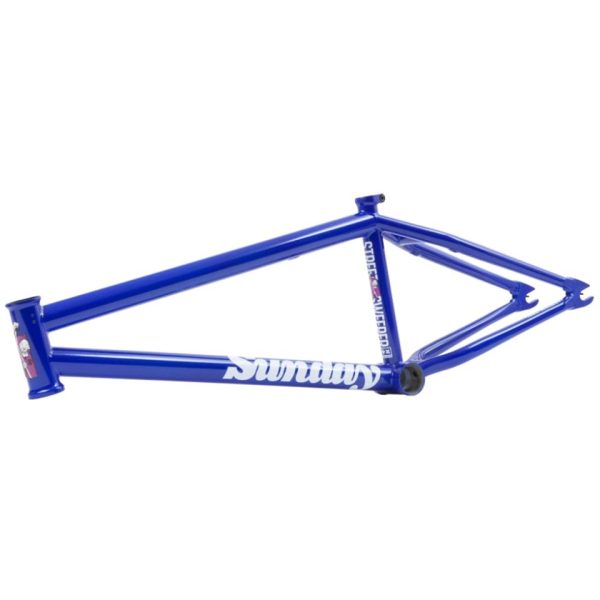

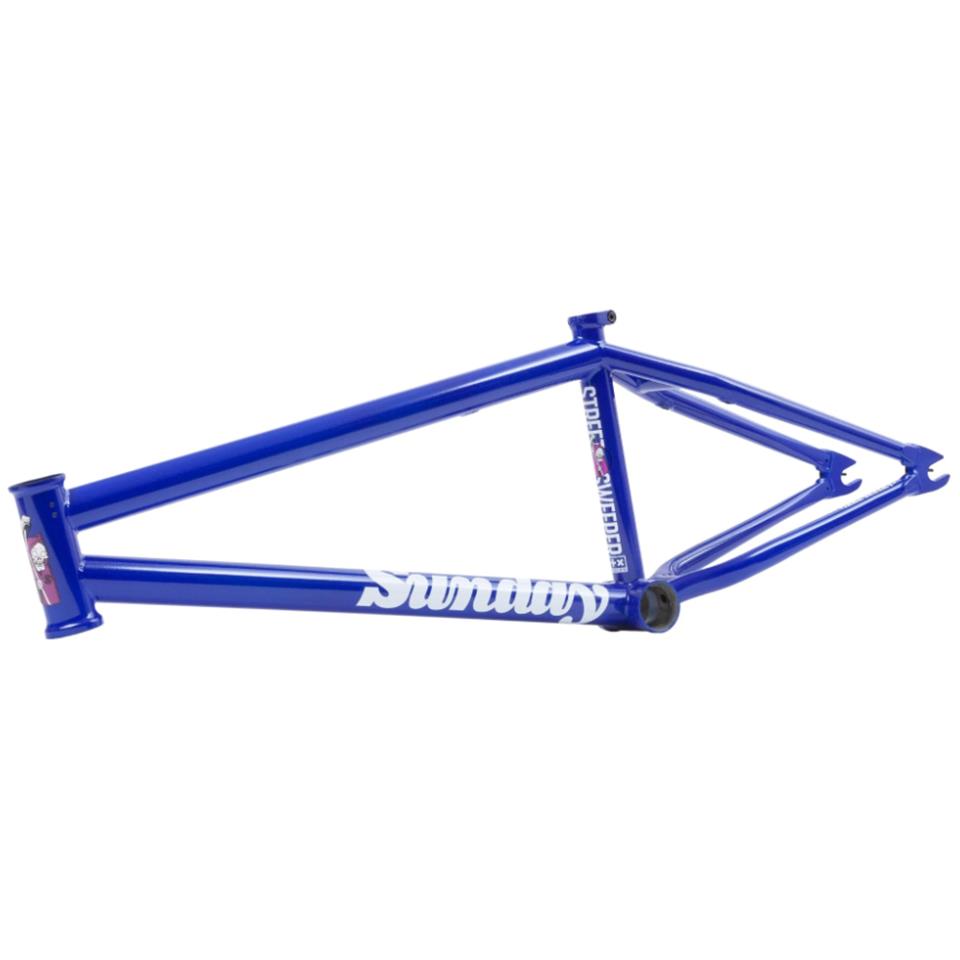

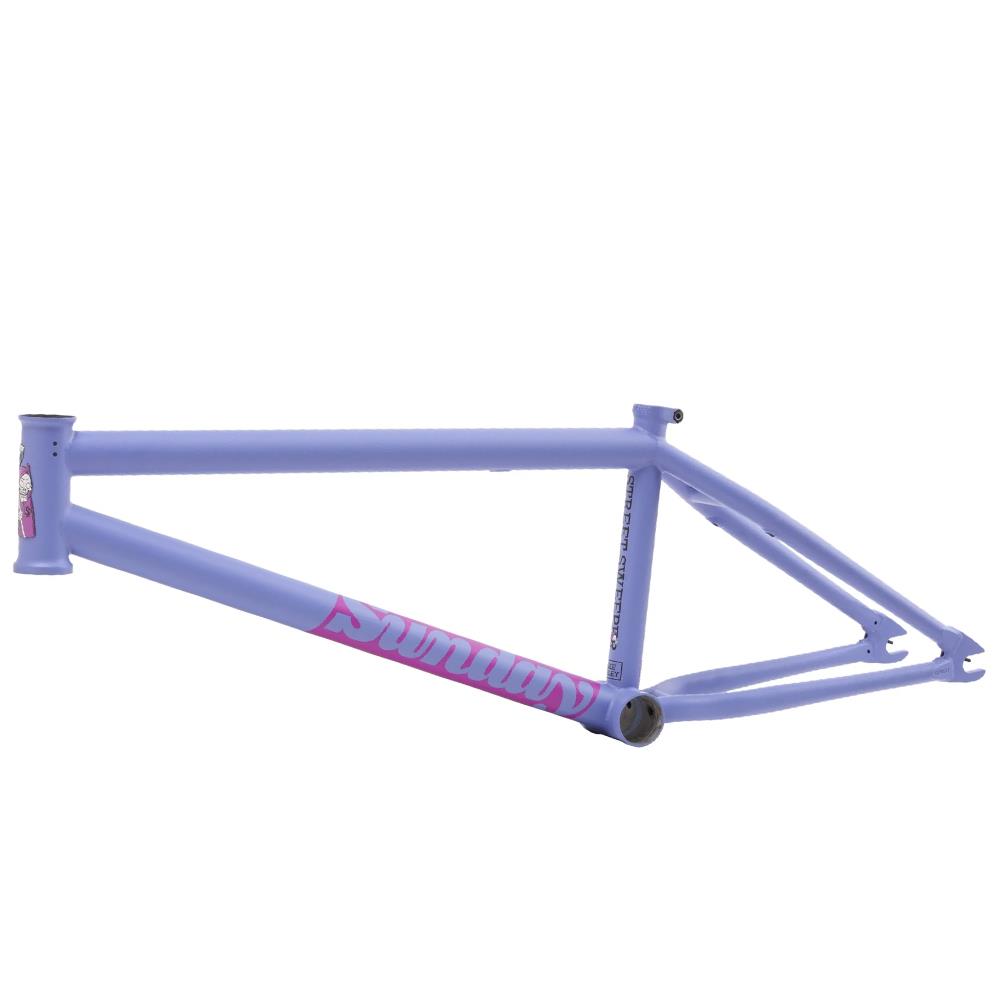

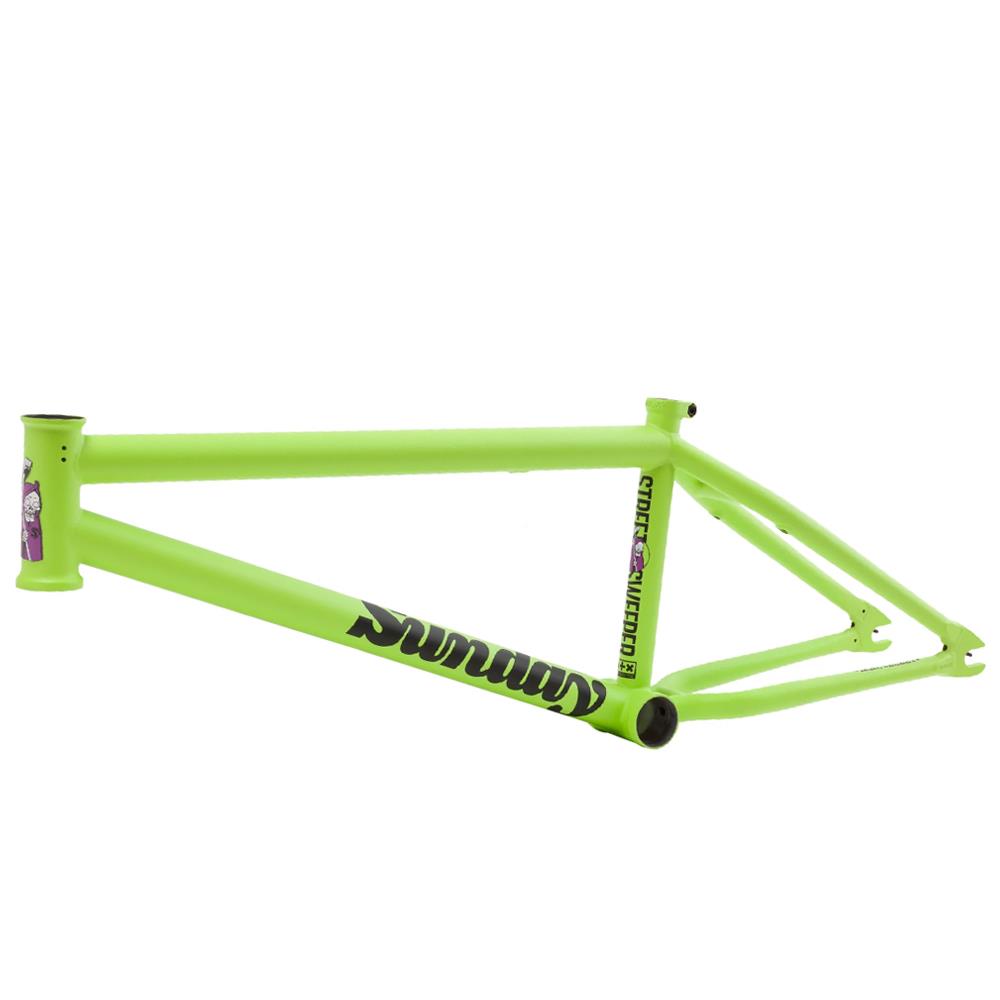

Jake Seeley s signature frame is designed to complement his progressive, technical street riding. The Street Sweeper evolves directly from Jake Seeley’s original Broadcaster frame by using shorter chain stays, a steeper head tube angle, a taller bottom bracket and smaller hollow dropouts with integrated chain tensioners. Built with versatility in mind, the Street Sweeper features removable u-brake hardware and Gyro tabs. The frame’s front triangle makes use of traditional round Nightshift style top and down tubes with proven internal gusseting.

###section###

Product Specs

1. MATERIAL: 100% 4130 Chromoly

3. HEAD TUBE ANGLE: 75.25°

5. SEAT TUBE ANGLE: 71°

7. CHAIN STAY LENGTH: 12.70-13”

9. BB HEIGHT: 11.7”

11. WHEEL SIZE: 20

13. STANDOVER HEIGHT: 8.8”

15. DROPOUT SIZE: 14mm

17. HEADSET TYPE: Integrated

19. BB TYPE: Mid

21. BRAKE MOUNTS: Removable

23. GYRO TABS: Pre-Drilled

25. WEIGHT: 5lbs

26. ###section###

    Product Highlights

    • Responsive Geometry with Short Backend and Steep Headtube
    • Best suited to Street and Park riding
    • High-quality Chromoly construction
    • Strong double butted tubing
    • Ultra tapered Seat and chain stays
