Beschreibung

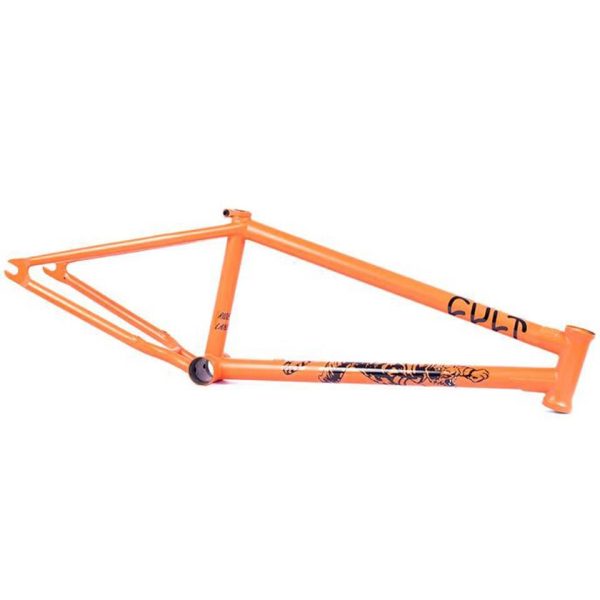

Made from 100% cult classic tubing along with top and down tube gussets for increased strength. Along with an integrated headtube and externally machined mid BB shell, investment cast seatpost clamp and seatstay bridge, tapered seatstays with room for 2.40” tyres, S-bend chainstays with removable brake mounts and investment cast heat-treated dropouts

###section###

Product Specs

1. MATERIAL: Full 4130 Chromoly
3. HEAD TUBE ANGLE: 74.5°
5. SEAT TUBE ANGLE: 71°
7. CHAIN STAY LENGTH: 13.8-14.1”
9. BB HEIGHT: 11.5
11. WHEEL SIZE: 20
13. STANDOVER HEIGHT: 9
15. DROPOUT SIZE: 14mm
17. HEADSET TYPE: Integrated
19. BB TYPE: Mid
21. BRAKE MOUNTS: Brakeless
23. GYRO TABS: Brakeless
25. WEIGHT: 5.2lbs

26. ###section###

    Product Highlights

    • Neutral Geometry for responsiveness and stability
    • Great all round frame for all types of riding
    • Gusseted tubing for added strength
    • Strong S-bend chainstays with room for 2.40” tires
    • Strong and durable investment cast dropouts

    • ###shogun-image-section###
